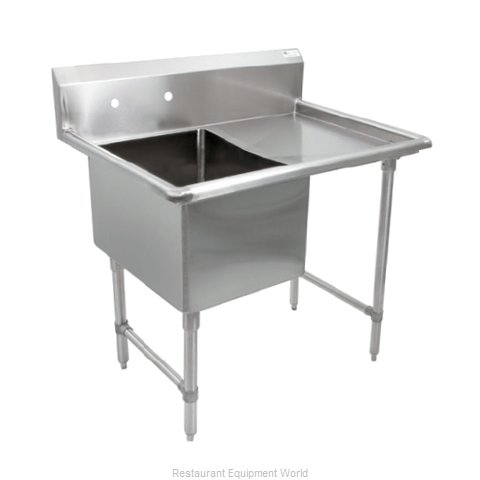

John Boos 1B16204-1D18R Sink, (1) One Compartment



John Boos 1B16204-1D18R Sink, (1) One Compartment
John Boos 1B16204-1D18R Sink, (1) One Compartment (Magnified)
John Boos 1B16204-1D18R Sink, (1) One Compartment
Price:
List Price: $2209.00
$730.25
Shipping:
×
Add to Cart
You have 0 in your cart


Send to my wish list

Be the first to write a review




Product Information

"B" Series Sink, 1-compartment, 38"W x 25-1/2"D x 44"H overall size, (1) 16"W x 20" front-to-back x 14" deep compartment, (1) 18" right drainboard, 10"H boxed backsplash with 45° top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, adjustable side bracing, adjustable bullet feet, NSF, CSA-Sanitation

Specifications

Manufacturer John Boos
Model Number JOH-1B16204-1D18R
Packed By Each
DRAINBOARDS With Right-hand Drainboard
SINK DEPTH (RIM - DRAIN) 14"
GAUGE 16 Ga
SPLASH HEIGHT 10"
BASE TYPE Legs With Side Crossrails
COMPARTMENT WIDTH (SIDE - SIDE) 16"
COMPARTMENT (FRONT - BACK) 20"
BASE FINISH Stainless Steel

Product Dimensions

  • Width: 38.00"
  • Depth: 25.50"
  • Weight: 65.00 lbs
