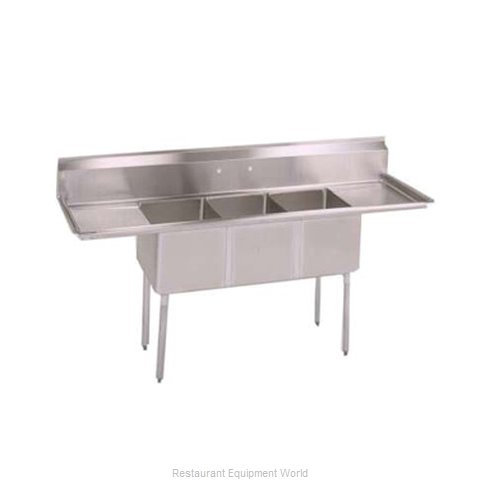

John Boos E3S8-15-14T15 Sink 3 Three Compartment



John Boos E3S8-15-14T15 Sink 3 Three Compartment
John Boos E3S8-15-14T15 Sink 3 Three Compartment (Magnified)
John Boos E3S8-15-14T15 Sink 3 Three Compartment
Price:
List Price: $1360.00
$552.00
Shipping:
×




Product Information

E-Series Compartment Sink, (3) 15" x 15" x 14" deep compartments, (2) 15" drainboards, 10"H boxed backsplash with 2" return to wall at 45° & 1" tile edge, corners coved at 3/4" radius, bottom of bowl drain to 3-1/2" dia. die stamped opening, (1) set faucet holes, 18/300 stainless steel, 1-5/8" OD galvanized legs & gussets, adjustable plastic bullet feet, NSF

Specifications

Manufacturer John Boos
Model Number JOH-E3S8-15-14T15
Packed By Each
Gauge 18 Ga, 300 Series
Base finish Galvanized
Compartment (front - back) 15"
Drainboards With Left & Right-hand Drainboards
Compartment Width (side - side) 15"
Splash Height 10"
Base type Legs
Sink Depth (rim - drain) 14"

Product Dimensions

  • Width: 75.00"
  • Depth: 20.50"
