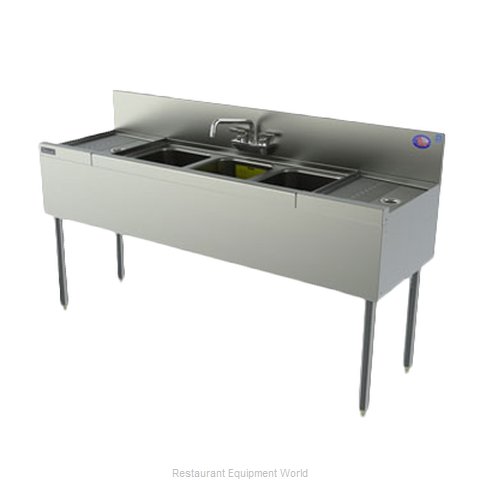

TSD Series Underbar Sink Unit, three compartment, 60"W x 24"D x 36-1/2"H, stainless steel construction, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 12" drainboards on left & right, 6"H backsplash, 4" O.C. deck mount faucet holes, stainless steel apron on front & sides, 5-1/2" rear deck, sound-deadened underside, 1/2" IPS supply shanks & nuts, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF
| Manufacturer | Perlick |
| Model Number | PER-TSD53C |
| Packed By | Each |
| DEPTH (FRONT - BACK) | 24" |
| COMPONENTS L TO R | Drainboard, 3 Sink Comp'ts, Drainboard |
| BOWL SIZE | 10" X 14" X 10" |
| WIDTH (SIDE - SIDE) | 60" |
| SPLASH | 6" |
| FINISH | Stainless Steel Top, Front, Ends And Legs |
| SINK COMPARTMENTS | 3 |
TS Series Underbar Sink Unit, four compartment, 72"W x 18-9/16"D x 36-1/2"H, stainless steel construction, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 12" drainboards on left & right, 6"H backsplash, 4" O.C. splash mount faucet holes, stainless steel apron on front & sides, sound-deadened underside, 3/8" copper supply tubes, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF
TSD Series Extra Capacity Underbar Sink Unit, one compartment, 18"W x 24"D x 36-1/2"H, 20 gauge stainless steel construction, 16" wide x 16-1/4" front-to-back x 15" deep compartment, 6"H backsplash, 4" O.C. deck mount faucet holes, 5-1/2" rear deck, stainless steel apron on front & sides, sound-deadened underside, 1-1/2" drain, (1) 8-1/2" standpipe, stainless steel legs with adjustable thermoplastic feet, NSF (order 6" deck swing faucet separately)
TSD Series Underbar Sink Unit, four compartment, 48"W x 24"D x 36-1/2"H, stainless steel construction, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 6"H backsplash, 4" O.C. deck mount faucet holes, 5-1/2" rear deck, stainless steel apron on front & sides, sound-deadened underside, 1/2" IPS supply shanks & nuts, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF
TSD Series Underbar Sink Unit, three compartment, 84"W x 24"D x 36-1/2"H, stainless steel construction, 10" wide x 14" front-to-back x 9-1/4" deep compartments, 24" drainboards on left & right, 6"H backsplash, 4" O.C. deck mount faucet holes, 5-1/2" rear deck, stainless steel apron on front & sides, sound-deadened underside, 1/2" IPS supply shanks & nuts, includes 1-1/2" drains & 8-1/2" removable overflow standpipes, stainless steel legs with adjustable thermoplastic feet, NSF
