American Panel Corporation 8X16-I Walk In Combination Cooler Freezer, Self-Conta





Product Information

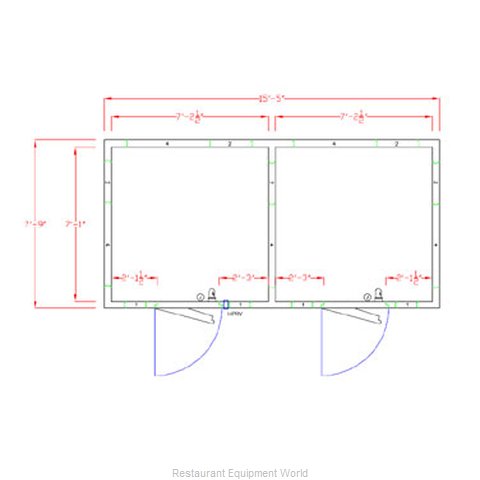

Walk-In Combination Cooler/Freezer (50/50 split), 7'-6" H x 15'-5" W x 7'-9" D, Indoor, foamed-in-place 4" urethane floor panels in freezer, floorless on vinyl screed in cooler, acrylume interior & exterior, hinged door with camlift hinges, system 100 monitoring system, vapor proof light, 1-1/2 HP low temperature (-10° F) freezer & 3/4 HP medium temperature (35° F) cooler hermetic pre-charged top quick-connect R448a refrigeration system, (FREEZER: condensing unit - 208v/60/1-ph, 12.6 amps; evaporator - 208v/60/1-ph, 0.9 amps fans, 4.3 amps heaters), (COOLER: condensing unit - 208v/60/1-ph, 12.7 amps; evaporator - 208v/60/1-ph, 1 amp), refrigeration to be supplied with Heatcraft Quick Response Controller as standard

Specifications

Manufacturer American Panel Corporation
Model Number AMP-8X16-I
Packed By Each
FINISH Galvanized
NOMINAL LONG SIDE 16'
NOMINAL SHORT SIDE 8'
FLOOR Floor/floorless
NOMINAL HEIGHT 7'-6"
INSTALLATION Indoor

Product Dimensions

  • Height: 90.00"
  • Width: 185.00"
  • Depth: 93.00"
  • Weight: 2401.00 lbs
