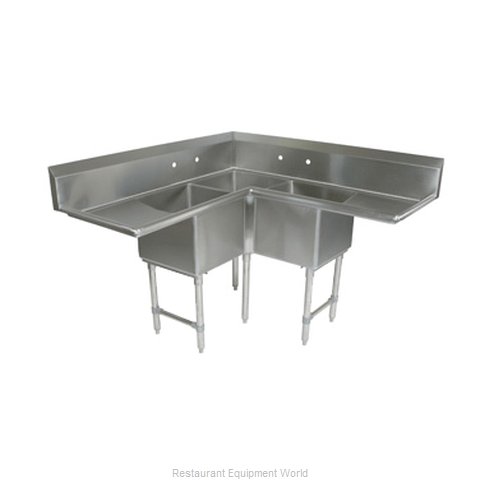

"B" Series Corner Sink, 3-compartment, 58-1/2"W x 58-1/2"D x 44"H overall size, (3) 18"W x 18" front-to-back x 14" deep compartments, (2) 18" left & right drainboards, 10"H boxed backsplash with 45° top and 2" return, (2) sets of splash mount faucet holes with 8" centers, coved corners at 3/4" radius, 3-1/2" die-stamped drain opening, 16/300 stainless steel, stainless steel legs, adjustable bracing, & gussets, adjustable stainless steel bullet feet, NSF (Available in Effingham and Nevada)
Manufacturer | John Boos |
Model Number | JOH-3BCS-184-2D18-X |
Packed By | Each |
BASE FINISH | Stainless Steel |
SPLASH HEIGHT | 10" |
GAUGE | 16 Ga |
BASE TYPE | Legs With Side Crossrails |
COMPARTMENT (FRONT - BACK) | 18" |
DRAINBOARDS | With Left & Right-hand Drainboards |
COMPARTMENT WIDTH (SIDE - SIDE) | 18" |
SINK DEPTH (RIM - DRAIN) | 14" |
"B" Series Corner Sink, 3-compartment, 58-1/2"W x 58-1/2"D x 44"H overall size, (3) 18"W x 18" front-to-back x 14" deep compartments, (2) 18" left & right drainboards, 10"H boxed backsplash with 45 top and 2" return, (2) sets of splash mount faucet holes with 8" centers, coved corners at 3/4" radius, 3-1/2" die-stamped drain opening, 16/300 stainless steel, stainless steel legs, adjustable bracing, & gussets, adjustable stainless steel bullet feet, NSF
"B" Series Sink, 3-compartment, 93"W x 29-1/2"D x 44"H overall size, (3) 18"W x 24" front-to-back x 14" deep compartments, (2) 18" left & right drainboards, 10"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 16/300 stainless steel construction, stainless steel legs, adjustable side bracing, adjustable bullet feet, NSF, CSA-Sanitation (Available in Effingham and Nevada)
Pro-Bowl Platter Sink, 3-compartment, 81-1/4"W x 36-1/2"D x 43"H overall size, (3) 14"W x 31" front-to-back x 14" deep compartments, (2) 18" left & right drainboards, 10"H boxed backsplash with 45 top and 2" return, (1) set of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain openings, 14/300 stainless steel construction, stainless steel legs, adjustable front & side bracing, adjustable bullet feet, NSF, CSA-Sanitation, KD
Pro-Bowl Corner Sink, 3-compartment, 62-1/2"W x 62-1/2"D x 44-1/16"H overall size, (3) 20"W x 20" front-to-back x 12 deep compartments, (2) 18" left & right drainboards, 10"H boxed backsplash with 45 top and 2" return, (2) sets of splash mount faucet holes with 8" centers, 3-1/2" die-stamped drain opening, 16/300 stainless steel construction, stainless steel legs, bracing, & adjustable bullet feet, NSF, CSA-Sanitation
